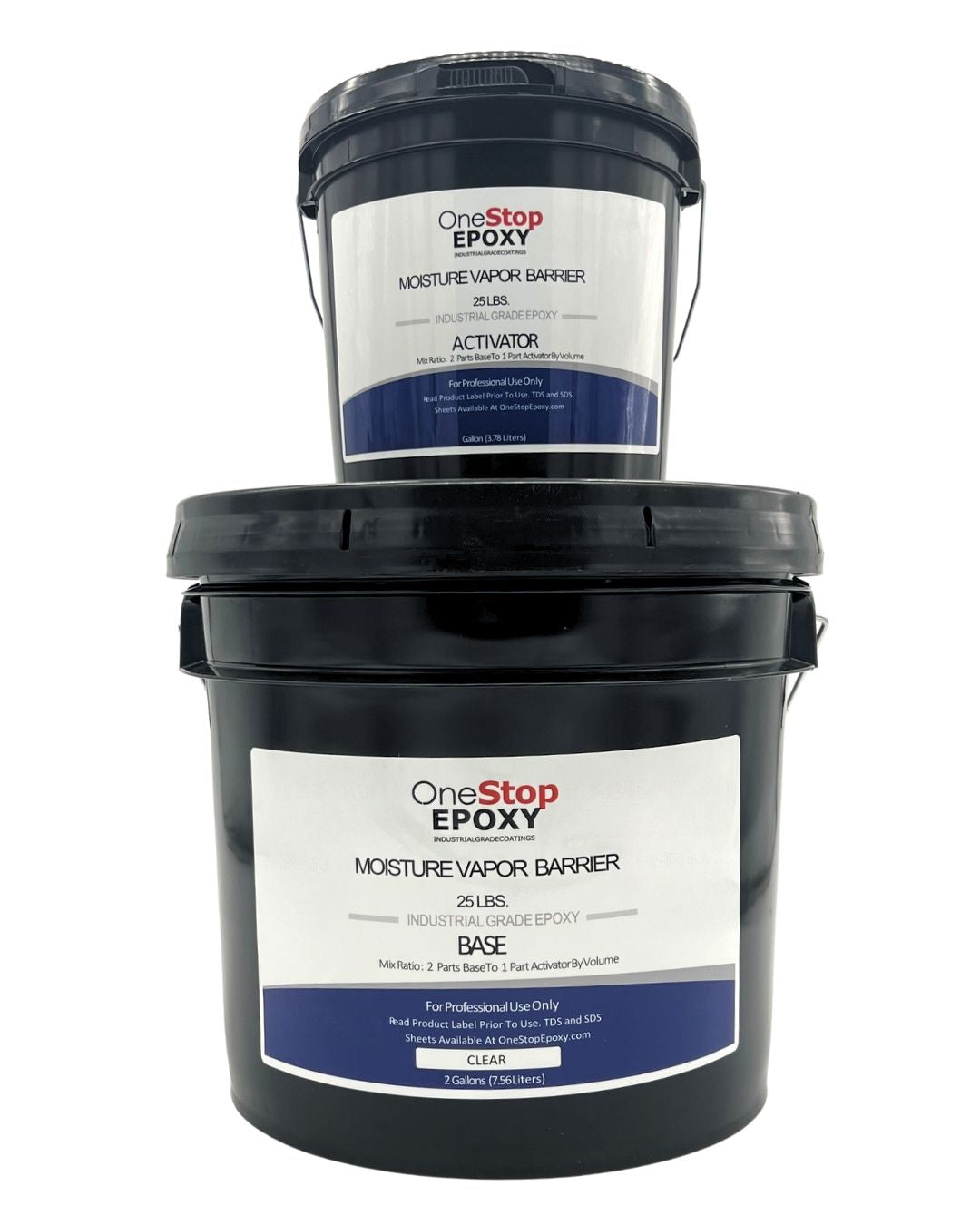

One Stop Epoxy Moisture Vapor Barrier Epoxy

One Stop Epoxy 100% Solids Moisture Vapor Barrier Epoxy is a contractor grade coating designed to block moisture vapor transmission through concrete slabs. Rated up to 25 lbs of moisture vapor emission, this product creates a durable barrier that helps prevent common flooring failures such as peeling, bubbling, and delamination.

This is not a finish coat. It is a critical base layer used to stabilize concrete before installing epoxy, polyaspartic, or urethane systems. If moisture is present or unknown, this step can determine whether a floor system lasts or fails.

What Is a Moisture Vapor Barrier Epoxy?

A moisture vapor barrier epoxy is a 100% solids coating designed to reduce or block moisture vapor transmission from concrete. Concrete is porous and can release moisture for years. When that moisture becomes trapped under a coating, it can break the bond between the coating and the slab. This product helps eliminate that risk by creating a stable surface for additional coatings to adhere to.

Why Moisture Causes Floor Failures

Moisture is one of the most common reasons epoxy floors fail. When vapor pressure builds beneath a coating, it can cause:

• Peeling and delamination
• Bubbling or blistering
• Loss of adhesion
• Premature system failure

Using a moisture vapor barrier epoxy is the most effective way for professional contractors to prevent these issues before they start, protecting both the floor and their reputation.

Key Features and Benefits

• Up to 25 lbs moisture vapor resistance helps prevent coating failure
• 100% solids formulation provides full build with no shrinkage
• Strong adhesion to properly prepared concrete
• Dry to touch in 8 to 10 hours for efficient project turnaround
• Zero VOC formulation suitable for interior applications
• Compatible with epoxy, polyaspartic, and urethane systems

Best Uses for Moisture Vapor Epoxy

• Garage floors with moisture concerns
• Commercial and industrial flooring systems
• Warehouses and manufacturing facilities
• Retail and showroom floors
• Older slabs or unknown moisture conditions
• Interior concrete floors in humid or high moisture environments

Ideal for Basements, Low-Lying Areas, and Coastal Regions

In coastal regions and low-lying areas—such as Louisiana to the Coastal Carolinas, and down to the southernmost tip of Florida—moisture vapor transmission is a major issue. This is especially true for basements, below-grade slabs, and areas with high water tables. These conditions are common across much of the country and are one of the leading causes of coating failure. This product performs exceptionally well in these demanding environments, helping installers build reliable flooring systems on slabs where moisture is either known or difficult to predict.

How This Fits Into an Epoxy Flooring System

Step 1: Moisture Vapor Barrier

Apply directly to properly prepared concrete to block moisture and stabilize the surface.

Step 2: Build Coat

Follow with One Stop Epoxy 100% Solids Epoxy for solid color, flake, or metallic systems.

Step 3: Topcoat

Finish with a wear layer such as PolyGloss 85 Polyaspartic for durability and long-term performance.

Moisture Vapor Epoxy vs Standard Epoxy

Mixing and Application Guidelines

Proper mixing is critical. If the two components are not mixed thoroughly, the product will not cure properly and will fail to block moisture.

• Mixer Type: Mix using a box or cage style mixer (paddle mixers are only recommended for 2 gallons or less).
• Mixing Speed: Mix at 300 to 450 RPM to avoid pulling excess air into the resin.
• Mix Time: Mix for a full 3 minutes.

Approximate Coverage Rates

Coverage will vary based on the porosity and profile of the concrete slab. Typically, this moisture vapor barrier should be applied at:

• Standard Coverage: 100 to 150 square feet per gallon (SFPG)

Dry Time and Recoat Window

• Dry to touch: 8 to 10 hours
• Recoat window: Follow system guidelines

Contractor Tip: This product does not replace proper surface preparation. Concrete must be mechanically ground (typically to a CSP 2 or 3) and properly profiled before application so the epoxy can penetrate and lock into the pores.

Frequently Asked Questions

Do I need a moisture vapor barrier epoxy?
If moisture is present or unknown, using a moisture vapor barrier is a smart preventative step to avoid coating failure.

How do I know if my concrete has a moisture problem?
Visible signs include dark spots, efflorescence (white powdery residue), or peeling paint. However, the only way to know for sure is to perform a Calcium Chloride test or use relative humidity (RH) probes. For a deeper dive, read our full guide: How Do I Know If I Need a Moisture Vapor Barrier?

Can I use this for basement floors?
Yes. Basements and below-grade slabs are inherently prone to trapping moisture. Applying this vapor barrier is highly recommended before finishing a basement floor with epoxy or other coatings.

Can I apply epoxy directly over concrete without this?
Yes, but if moisture is present and exceeds the rating of your standard epoxy, the coating can bubble, peel, or fail over time.

Is this required for garage floors?
Not always, but it is strongly recommended in humid environments, on older slabs, or if you are offering a long-term warranty to your clients.

What happens if I skip this step?
Skipping moisture control on a wet slab will inevitably lead to peeling, blistering, and total system failure.

Can this be used as a finished floor?
No. This is a base layer designed for function, not aesthetics. It must be coated with a build coat and an appropriate topcoat.

What should I use over this product?
Typically, installers follow this with a 100% solids epoxy and finish with a high-performance topcoat like PolyGloss 85 Polyaspartic.

How long do I have to wait before applying my next coat?
This product is generally dry to the touch in 8 to 10 hours. You should apply your next coat within the recommended recoat window to ensure a strong chemical bond.
